Baling machines – Balers ( 1 of 2 )

CLOSE

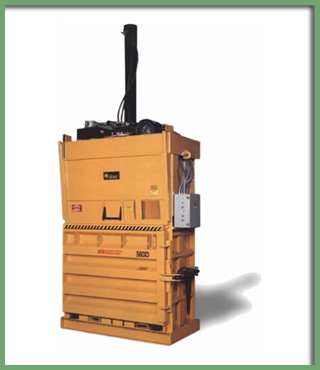

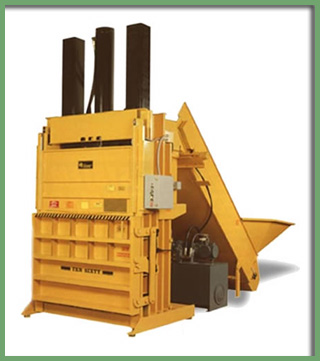

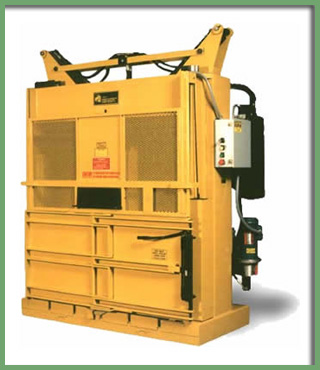

	M60STD	M60MD	S60XD	System Ten Sixty
Click images to enlarge					MORE BALERS
Bale Size	30" x 60" x Up to 51" (76 Cm x 152 Cm x 130 Cm)	30" x 60" x Up to 30" (76 Cm x 152 Cm x 76 Cm)	30" x 60" x Up to 51" (76 Cm x 152 Cm x 130 Cm)	30" x 60" x Up to 48" (76 Cm x 152 Cm x 122 Cm)
Ram Pressure	56,550 Lbs. Max (25,650 Kg)	57,805 Lbs. Max (26,221 Kg)	92,360 Lbs. Max (41,894 Kg)	235,620 Lbs. Max (106,876 Kg), 150 P.S.I.
Cycle Time	49 Sec.	33 Sec.	64 Seconds	30 Seconds No Load
Cylinder	6" (15 Cm) Bore, 4" (10 Cm), 48" (122 Cm) Stroke	Twin 4" (10 Cm) Bore, 32" (81 Cm) Stroke	7" (18 Cm) Bore, 4.5" Rod (11 Cm), 64" (163 Cm) Stroke	10" (25 Cm) Bore, 6" (15 Cm) Rod, 52" (132 Cm) Stroke
Motor	10 HP	5 HP, 3450 RPM	20 HP, 1750 RPM, TEFC	20 HP, 1750 RPM, 3 PH
Electrical	208/230/460 Volt, 3 Phase. 60 Hz	208/230/460 Volt, 3 Phase. 60 Hz	208/230/460 Volt, 3 Phase. 60 Hz	208/230/460 Volt, 3 Phase. 60 Hz
Bale Ejection	Hydraulic	Hydraulic	Hydraulic	Dual Hydraulic Chain
Loading Door Opening	24" x 60" (61 Cm x 152 Cm)	24" x 60" (61 Cm x 152 Cm)	25" (64 Cm) x 60" (152 Cm)	25" (64 Cm) x 60" (152 Cm)
Loading Door Height	55" (140 Cm)	39" (99 Cm)	57" (145 Cm)	56" (142 Cm)
Overall Height	146" (371 Cm)	95.75" (243 Cm)	166" (422 Cm)	158" (401 Cm)
Overall Depth	44" (122 Cm)	37" (94 Cm)	50" (127 Cm)	56" (142 Cm)
Overall Width	80" (203 Cm)	78" (198 Cm)	74" (188 Cm)	117" (297 Cm)
Depth With Door Open	102" (259 Cm)	73" (186 Cm)	110" (279 Cm)	124" (315 Cm)
Width With Door Open	88" (224 Cm)	80" (203 Cm)	78" (198 Cm)	82" (208 Cm)
Shipping Height	80" (203 Cm) (Ships on side)	81.5" (207 Cm)	74" (188 Cm) (Ships on side)	111" (282 Cm)
Shipping Weight	5,100 Lbs. (2,313 Kg)	4,000 Lbs. (1,815 Kg)	6,600 Lbs. (2,994 Kg)	17,000 Lbs. (7,711 Kg)
Required Operating Area	62.3 Sq. Ft. (5.79 Sq. Meters)	39.5 Sq. Ft. (3.7 Sq. Meters)	68 Sq. Ft. (6.31 Sq. Meters)	105 Sq. Ft. (9.7 Sq. Meters)
