GOC sells, rents and maintains Nedland compactors. Nedland industries manufactures the highest quality totally UL listed stationary compactors in the industry to fit virtually any application. Nedland stationary compactors use the most advanced electrical and hydraulic system in the industry, along with the lowest maintenance cost design in the industry.

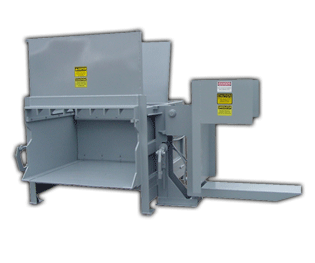

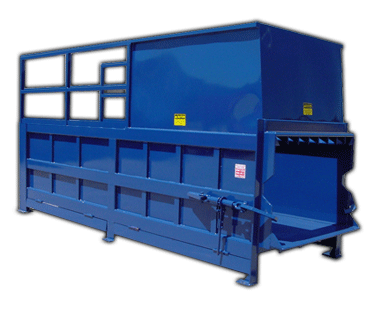

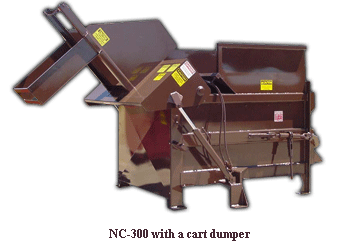

NC-50 NC-100 NC-200 NC-300 NC-400

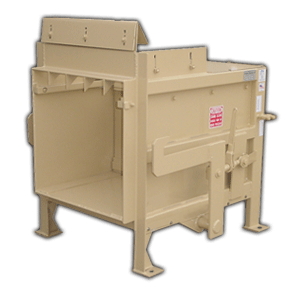

Specifications Features Options Schematics NC-50 Specifications   Overall Length 48" Overall Width 40" Overall Height 47" Compactor Capacity .5 cubic yard Platen Area 20.5"x28.5"x29.5" Charge Opening 20.5"x29.5" Ram Penetration 4" Twin Cylinders 2.5"x20"x1.5" Line Pressure 2000 PSI Max Line Pressure 2500 PSI Max Ram Force 19500 LBS Cycle Time 40 Seconds Fluid Capacity 35 Gallons Pump 5 GPM Motor 5 HP/Tri-Volt, 3 Phase Loading Height 41" App. Shipping Weight 2900 LBS NC-50 Container Features 5/16" steel plate floor with 3" structural channels .25" steel plate sides with 3"x 2"x .25" structural steel tubing Breaker bar 6"x 6"x 1/2" with retaining teeth .5" steel plate hydraulic cylinder mounts Replaceable .5" UHMW polyethylene wear bars on all sides and bottoms for a smooth quiet and near frictionless operation Weatherproof control panel and power pack Removable rear access panel Container guide rails Biodegradable hydraulic fluid Electric / Hydraulic Features (PLC) Controlled Power Unit E-Stop Button Automatic Single Cycle Auto/Manual Selector Key Lock On/Off Switch Multi-Cycle 80% - 100% Full Lights Automatic Shutdown with Auto Safety Retract 15' Remote Low oil sensor shutdown Inlet Fluid Strainer Left or Right Side Hydraulic Connections Receiver Container 4 yd Rear Load 6 yd Rear Load 8 yd Rear Load 4 yd Front Load 6 yd Front Load 8 yd Front Load This Equipment Conforms to all ANSI Z 245.2 Safety Standards. NC-50 Options 5 HP 220V 1 phase Fluid reservoir heater Driver pack out Open hopper (for loading dock or ground loading) Enclosed doghouse with door and interlock Walk on or drive on deck with 42" safety rails Side loading hoppers Through-the-wall chutes NC-50 Schematics NC-50 side view NC-50 top view Specifications   Overall Length 64" Overall Width 58" Overall Height 49" Compactor Capacity 1 Cubic Yard Platen Area 36"x31.5"x48" Charge Opening 31"x48" Ram Penetration 8" Twin Cylinder 2.5"x36"x1.5" Line Pressure 2000 PSI Max Line Pressure 2500 PSI Max Ram Force 19500 LBS Cycle Time 40 Seconds Fluid Capacity 35 Gallons Pump 5 GPM Motor 5 HP/Tri-Volt,3 Phase Loading Height 43" App. Shipping Weight 3400 LBS Container Features 5/16" Steel plate floor with 3" structural channels. .25" Steel plate sides with 3"x2"x.25" structural steel tubing. Breaking bar 6"x6"x.5" with retaining teeth. .5" Steel plate hydraulic cylinder mounts. Replaceable .5" UHMW polyethylene wear bars on ram sides, top and bottoms of platen for a smooth, quiet and near frictionless operation. Weatherproof control panel and power pack. Removable rear access panel. Container guide rails Biodegradable hydraulic fluid Electric / Hydraulic Features (PLC) Controller power unit E-Stop button Automatic single cycle Auto/manual selector Key lock on/off switch Low oil sensor shutdown Multi cycle 80%-100% Full light Automatic shutdown with auto safety retract 15' remote Fluid level and temp gauge Fluid filled pressure gauge Inlet fluid strainer 15' hydraulic hoses Left of right side hydraulic connections Receiver Container 2yd Rear Load 4yd Rear Load 6yd Rear Load 8yd Rear Load 2yd Front Load 4yd Front Load 6yd Front Load 8yd Front Load This Equipment Conforms to all ANSI Z 245.2 Safety Standards. 5 HP 220V, 1 Phase Fluid reservoir heater Driver pack out Open hopper Enclosed doghouse with door and interlock Walk on or drive on deck with 42" safety rails Side loading hoppers Through-the-wall chutes NC-100 side view NC-100 top view Specifications   Overall Length 84" Overall Width 73" Overall Height 57" Compactor Capacity 2 Cubic Yards Platen Area 60"x44"x36" Charge Opening 44"x60" Ram Penetration 12" Twin Cylinder 4"x42"x2.5" Line Pressure 2000 PSI Max Line Pressure 2500 PSI Max Ram Force 63000 LBS Cycle Time 45 Seconds Fluid Capacity 35 Gallons Pump 10.5 GPM Motor 10 HP/Tri-Volt, 3 Phase Loading Height 51" App. Shipping Weight 4450 LBS Container Features 5/16" steel plate floor with 3" structural channels .25" steel plate sides with 3"x 2"x .25" structural steel tubing Breaker bar 6"x 6"x 1/2" with retaining teeth .5" steel plate hydraulic cylinder mounts Replaceable .5" UHMW polyethylene wear bars on all sides and bottoms for a smooth quiet and near frictionless operation Weatherproof control panel and power pack Removable rear access panel Container guide rails Biodegradable hydraulic fluid Electric / Hydraulic Features (PLC) Controlled Power Unit E-Stop Button Automatic Single Cycle Auto/Manual Selector Key Lock On/Off Switch Multi-Cycle 80% - 100% Full Lights Automatic Shutdown with Auto Safety Retract 15' Remote Low oil sensor shutdown Inlet Fluid Strainer Left or Right Side Hydraulic Connections Receiver Container 4 yd Rear Load 6 yd Rear Load 8 yd Rear Load 4 yd Front Load 6 yd Front Load 8 yd Front Load This Equipment Conforms to all ANSI Z 245.2 Safety Standards. 5 HP 220V 1 phase Fluid reservoir heater Driver pack out Open hopper (for loading dock or ground loading) Enclosed doghouse with door and interlock Walk on or drive on deck with 42" safety rails Side loading hoppers Through-the-wall chutes NC-200 side view NC-200 top view Specifications   Overall Length 120" Overall Width 73" Overall Height 57" Compactor Capacity 3 Cubic Yards Platen Area 60"x44"x36" Charge Opening 60"x60" Ram Penetration 12" Twin Cylinder 4"x60"x2.5" Line Pressure 2000 PSI Max Line Pressure 2500 PSI Max Ram Force 65000 LBS Cycle Time 50 Seconds Fluid Capacity 35 Gallons Pump 15 GPM Motor 20 HP/Tri-Volt, 3 Phase Loading Height 51" App. Shipping Weight 5250 LBS Container Features 5/16" steel plate floor with 3" structural channels .25" steel plate sides with 3"x 2"x .25" structural steel tubing Breaker bar 6"x 6"x 1/2" with retaining teeth .5" steel plate hydraulic cylinder mounts Replaceable .5" UHMW polyethylene wear bars on all sides and bottoms for a smooth quiet and near frictionless operation Weatherproof control panel and power pack Removable rear access panel Container guide rails Biodegradable hydraulic fluid Electric / Hydraulic Features (PLC) Controlled Power Unit E-Stop Button Automatic Single Cycle Auto/Manual Selector Key Lock On/Off Switch Multi-Cycle 80% - 100% Full Lights Automatic Shutdown with Auto Safety Retract 15' Remote Low oil sensor shutdown Inlet Fluid Strainer Left or Right Side Hydraulic Connections Receiver Container 4 yd Rear Load 6 yd Rear Load 8 yd Rear Load 4 yd Front Load 6 yd Front Load 8 yd Front Load This Equipment Conforms to all ANSI Z 245.2 Safety Standards. 5 HP 220V 1 phase Fluid reservoir heater Driver pack out Open hopper (for loading dock or ground loading) Enclosed doghouse with door and interlock Walk on or drive on deck with 42" safety rails Side loading hoppers Through-the-wall chutes NC-300 side view NC-300 top view Specifications   Overall Length 16'6" Overall Width 73" Overall Height 64" Compactor Capacity 4 Cubic yards Charge Opening 60"x78" Ram Penetration 14" Bypass Cylinder 7"x90"x4" Line Pressure 2000 PSI Max Line Pressure 2500 PSI Max Ram Force 77000 LBS Cycle Time 40 Seconds Fluid Capacity 60 Gallons Pump 40 GPM Motor 20 HP/Tri-Volt, 3 Phase Loading Height 57" App. Shipping Weight 9750 LBS Container Features 5/16" steel plate floor with 3" structural channels .25" steel plate sides with 3"x 2"x .25" structural steel tubing Breaker bar 6"x 6"x 1/2" with retaining teeth .5" steel plate hydraulic cylinder mounts Replaceable .5" UHMW polyethylene wear bars on all sides and bottoms for a smooth quiet and near frictionless operation Weatherproof control panel and power pack Removable rear access panel Container guide rails Biodegradable hydraulic fluid Electric / Hydraulic Features (PLC) Controlled Power Unit E-Stop Button Automatic Single Cycle Auto/Manual Selector Key Lock On/Off Switch Multi-Cycle 80% - 100% Full Lights Automatic Shutdown with Auto Safety Retract 15' Remote Low oil sensor shutdown Inlet Fluid Strainer Left or Right Side Hydraulic Connections Receiver Container 4 yd Rear Load 6 yd Rear Load 8 yd Rear Load 4 yd Front Load 6 yd Front Load 8 yd Front Load This Equipment Conforms to all ANSI Z 245.2 Safety Standards. 5 HP 220V 1 phase Fluid reservoir heater Driver pack out Open hopper (for loading dock or ground loading) Enclosed doghouse with door and interlock Walk on or drive on deck with 42" safety rails Side loading hoppers Through-the-wall chutes NC-400 side view NC-400 top view
