SPECIFICATIONS

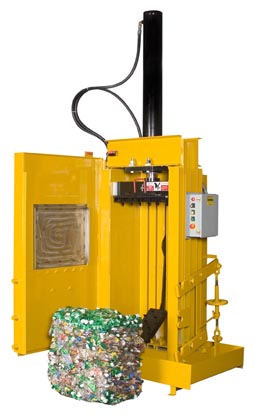

The ExtractPack and its array
of revolutionary features make this baler a machine on
the cutting edge. The ExtractPack is the first baler of its
kind to combine baling and draining both aluminum and
plastic containers in one step. The ExtractPack performs
over 7 times faster than draining your containers manually.
Liquid control is managed by removable splash guards that
help reduce the mess caused by the total destruction of
nearly 2,000 full plastic bottles or 4,000 aluminum cans.
A large 51-gallon reservoir, located below the machine,
collects the liquid being expelled from the baler and
funnels it to the drain of your choosing or the optional
sump pump can be used to contain it into a collection
container.
A TEFC (Totally Enclosed Fan Cooled) motor
allows you to hose the entire machine down. Safety is
always our concern, so the ExtractPack comes standard
with state-of-the-art magnetically coded safety switches,
the safest switch on the market. They guarantee
complete closure of all doors during the compaction
cycle. The ExtractPack features Harmony Enterprises
new Sharks Teeth system. The ram face and chamber
floor are lined with Sharks Teeth to rip and puncture
the material in the chamber to ensure proper baling and
liquid removal. The ExtractPack, another great idea from
Harmony Enterprises...
|
|
| Bale Size |
24" x 16" x
up to 24" (61 cm x 41 cm x up to 61 cm) |
| Bale
Weight |
|
| -Aluminum
Cans |
up to
120 pounds (54Kg) |
| -Plastic
Bottles |
up
to 230 pounds (104Kg) |
| Ram Pressure |
56,550 Pounds (25,650
Kg) |
| Ram Pressure PSI |
165 Pounds |
| Cylinder |
6" (15.2 cm) Bore,
4" (10.2 cm) Rod, 48" (122 cm) Stroke |
| Motor |
10Hp TEFC |
| Pump |
12 Gallon |
| Liquid Reservoir |
51 Gallon Accepts A 3"
Male Pipe Coupler |
| Electrical Power |
208/230/460 Volt, 3 PH,
60 Hz |
| Bale Ejection |
Hydraulic Chain |
| Bale Tying |
Wire or Polyethylene Twine |

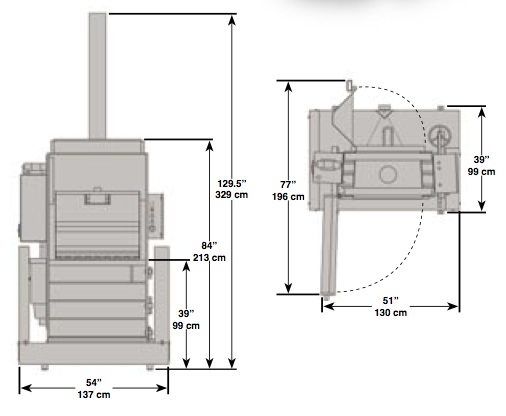

DIMENSIONS
| Chute Door
Opening |
24" x 21" (61
cm x 53 cm) |
| Overall
Height |
129.5"
(329 cm) |
| Overall Depth |
39" (99 cm) |
| Overall Width |
54" (137 cm) |
| Depth with doors open |
77" (196 cm) |
| Shipping Height |
84" (213 cm) |
| Actual Weight |
3,060 Pounds (1,388 Kg) |
| Installation and Operating
Area |
27.3 Square Feet (2.53
Square Meters) |
| Options |
Sump Pump System Single
Phase Power |
 |
