Compaction Equipment – Self-Contained Compactors

When purchasing a Self Contained compactor for your wet waste, the most important thing it must NOT DO is leak. All of our Self Contained compactors use a triple hinged, full seal rear door. To ensure the tightest seal possible, we have engineered an exclusive side and BOTTOM latching system. Through out the life of our compactors, the rear door will not bow outward from extreme pressures allowing fluid to leak. CLOSE

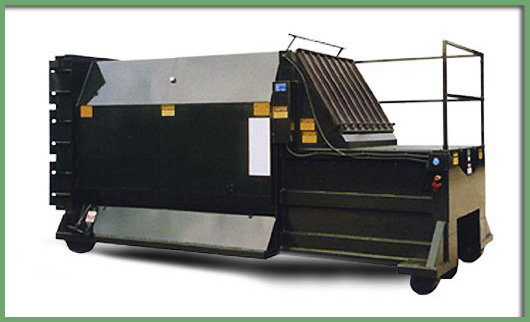

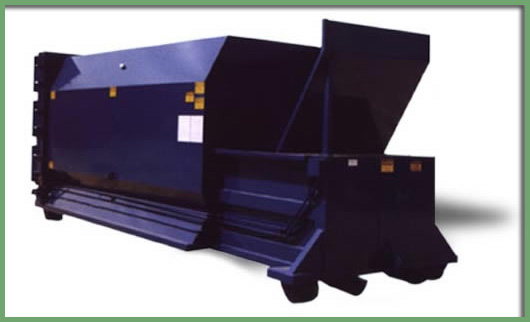

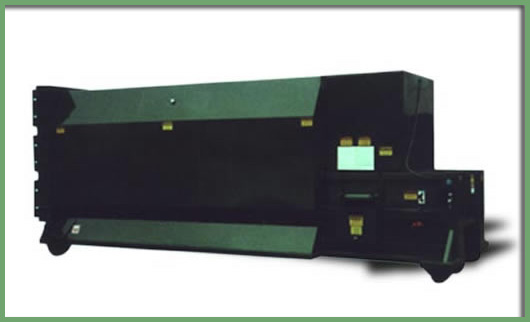

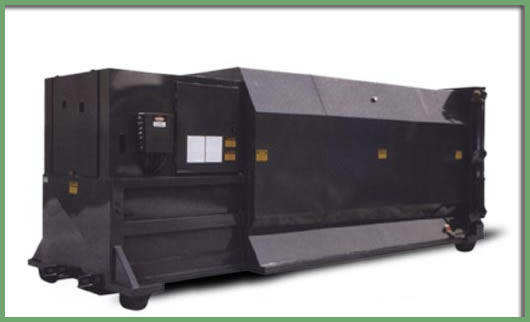

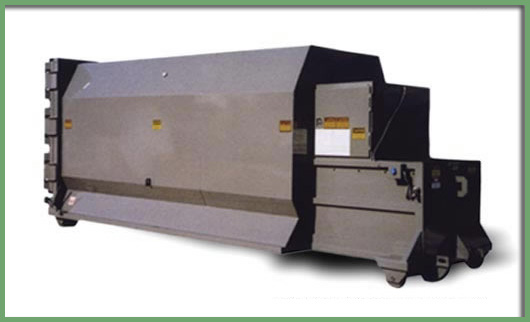

	NSC200-15	NSC200-20	NSC200-30	NSC200-35	NSC200-40
Click images to enlarge
Overall Length	17'-5"	18'-4"	22'-4"	23'-4"	26"
Overall Width	101"	101"	101"	101"	101"
Overall Height	94"	102"	102"	102"	102"
Compactor Capacity	2 Cu. Yds.	2 Cu. Yds.	2 Cu. Yds.	2 Cu. Yds.	2 Cu. Yds.
Container Capacity	15 Cu. Yds. (60 Cu. Yds. Loose)	20 Cu. Yds. (80 Cu. Yds. Loose)	30 Cu. Yds. (120 Cu. Yds. Loose)	35 Cu. Yds. (140 Cu. Yds. Loose)	40 Cu. Yds. (160 Cu. Yds. Loose)
Platen Area	60" x 44" x 36"	60" x 44" x 36"	60" x 44" x 36"	60" x 44" x 36"	60" x 44" x 36"
Charge Opening	42" x 60"	42" x 60"	42" x 60"	42" x 60"	42" x 60"
Ram Penetration	12"	12"	12"	12"	12"
Twin Bypass Cylinders	4" Bore x 42" Stroke x 2.5" Rod	4" Bore x 42" Stroke x 2.5" Rod	4" Bore x 42" Stroke x 2.5" Rod	4" Bore x 42" Stroke x 2.5" Rod	4" Bore x 42" Stroke x 2.5" Rod
Line Pressure	2000 PSI	2000 PSI	2000 PSI	2000 PSI	2000 PSI
Max Line Pressure	2500 PSI	2500 PSI	2500 PSI	2500 PSI	2500 PSI
Max Ram Force	63,000 Lbs.	63,000 Lbs.	63,000 Lbs.	63,000 Lbs.	63,000 Lbs.
Cycle Time	45 Sec.	45 Sec.	45 Sec.	45 Sec.	45 Sec.
Fluid Capacity	35 Gal.	35 Gal.	35 Gal.	35 Gal.	35 Gal.
Pump	10.5 GPM	10.5 GPM	10.5 GPM	10.5 GPM	10.5 GPM
Motor	10HP - Tri-Volt, 3 Phase	10HP - Tri-Volt, 3 Phase	10HP - Tri-Volt, 3 Phase	10HP - Tri-Volt, 3 Phase	10HP - Tri-Volt, 3 Phase
Loading Height	53"	53"	53"	53"	53"
Approximate Weight	9,500 Lbs.	10,300 Lbs.	10,700 Lbs.	d10,900 Lbs.	11,500 Lbs.
